Marina ADCP

5-minute Mean Currents over Marina ADCP for last 2 Days

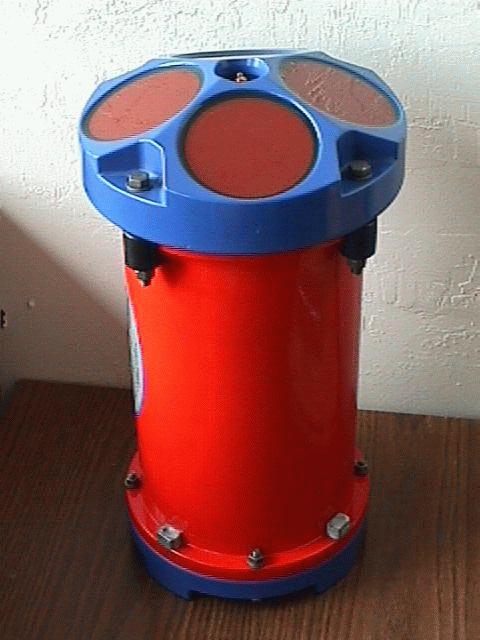

Vertical profiles of currents from 13m depth to surface are made with this acoustic doppler current profiler mounted approximately 1m above the bed. Current vectors (cross-shore and along-shore components) are measured every 0.5m up to the surface. A two day timeseries of the most recent current components is shown in the color contour plots below. These data have been averaged to 5 minute intervals to remove variations caused by waves. The blue to red color scale corresponds to a -0.2 to +0.2 m/s magnitude (Note that this is double the range of the MISO ADCP 5-minute mean plot). If the currents are moving uniformly through the water column, these timeseries appear as vertical stripes, whereas current gradients, or vertical shear, have color changes in the vertical. The upper 1 to 2 bins of data from the instrument is contaminated by an acoustic reflection from the water surface. The sinusoidal shape results from tidal water depth variations. The time axis is yeardays, where yearday 1.000 is the start of 1 January. This instrument was installed and activated on 23 October 2006 (yearday 296).

Please note, all times displayed here are Universal Time (UT), and these plots are updated approximately twice a day.


Cross Shore Currents over last 2 days

Along Shore Currents over last 2 days

Currents over Marina ADCP for most recently available 2 minutes

The current data below was also collected by the same acoustic doppler current profiler noted above. This 2 minute timeseries shows currents at the original 1 sample per second data rate, representing wave velocities. Here the velocity range has been expanded so that the blue to red color scale corresponds to a -1.0 to +1.0 m/s magnitude.

Cross Shore Currents over last 2 minutes

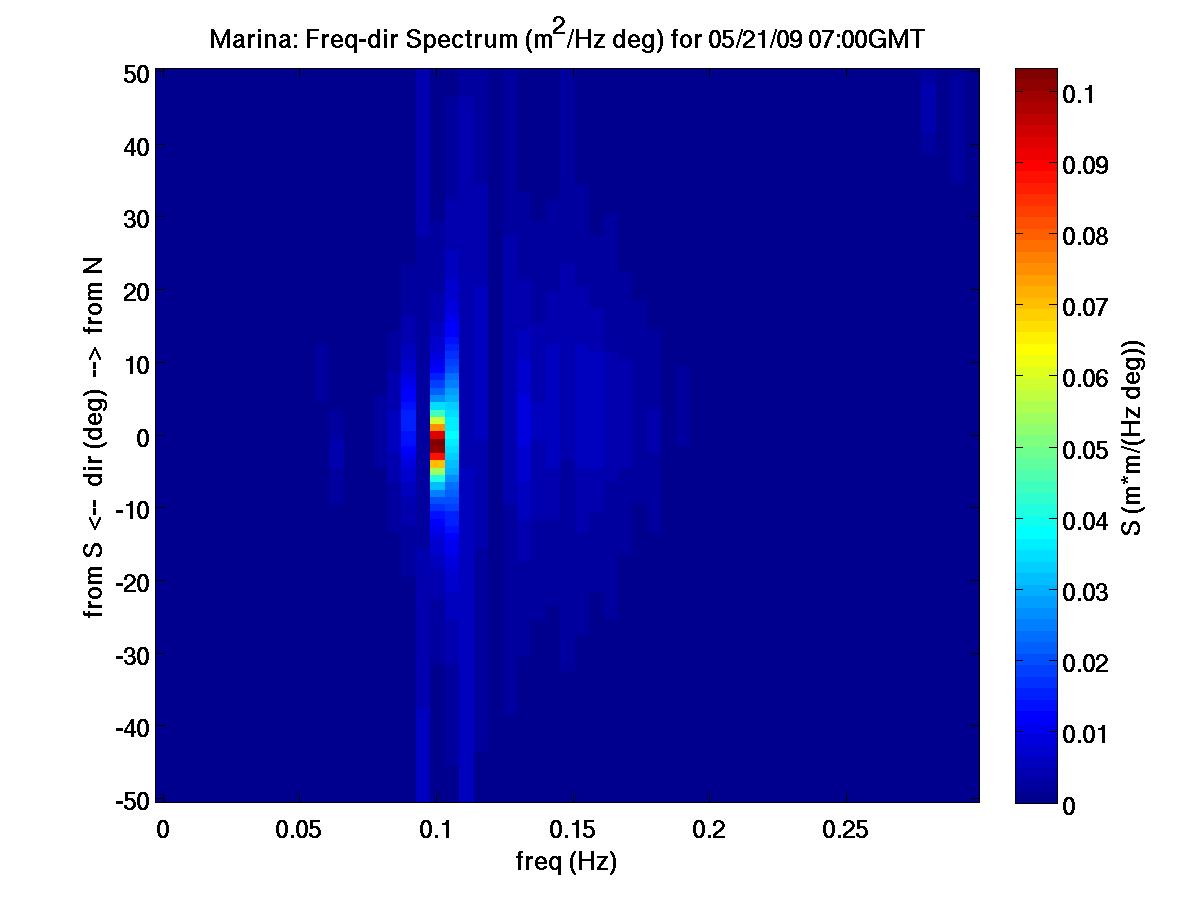

Frequency-Directional Spectrum, Marina

The spectrum shown below was calculated using the Maximum Entropy Method with sixty minutes of P,U, and V data. It has a frequency resolution of 0.005Hz, directional resolution of 1 degree, and approximately 35 degrees of freedom.

ADCP Freq-Dir Spectrum, Marina

Pressure over Marina ADCP for last 4 days

The acoustic doppler current profiler records pressure in decibars, one sample every 30 seconds. This timeseries shows 5-minute meaned pressure values recorded over the most recent 4 days.

ADCP Pressure over last 2 minutes

ADCP Location:

Latitude: 36deg 42' 0.018" N
Longitude: 121deg 48' 53.93" W
Original Depth: Approximately 13.0m
Deployed: 23 October 2006
